73 / TOOLING

Tool Holders & Adapters

BMT Double External Tool Holder

BMT45-DC25-H60

Side-view body depth (A, mm)60Tool-seat opening depth (B, mm)25

Explore specifications ↗

74 / TOOLING

Tool Holders & Adapters

BMT Double External Tool Holder

BMT55-DC25-H80

Side-view body depth (A, mm)80Tool-seat opening depth (B, mm)25

Explore specifications ↗

75 / TOOLING

Tool Holders & Adapters

BMT Double External Tool Holder

BMT65-DC25-H75

Side-view body depth (A, mm)75Tool-seat opening depth (B, mm)25

Explore specifications ↗

76 / TOOLING

Tool Holders & Adapters

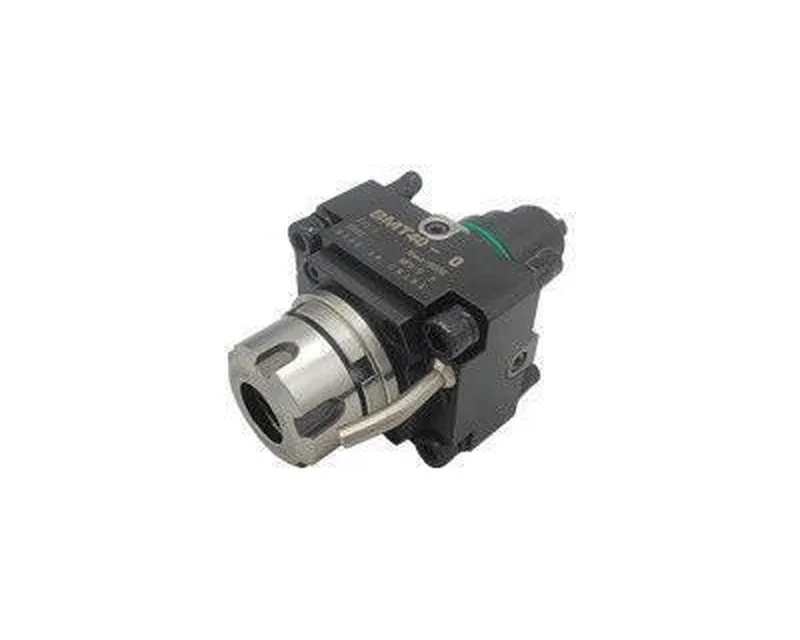

BMT Straight Driven Tool Holder

BMT40-0-ER25

Projection above mounting face (A, mm)76Drive-side projection below mounting face (B, mm)61

Explore specifications ↗

77 / TOOLING

Tool Holders & Adapters

BMT Straight Driven Tool Holder

BMT45-0-ER25

Projection above mounting face (A, mm)86.5Drive-side projection below mounting face (B, mm)83

Explore specifications ↗

78 / TOOLING

Tool Holders & Adapters

BMT Straight Driven Tool Holder

BMT55-0-ER32

Projection above mounting face (A, mm)82.5Drive-side projection below mounting face (B, mm)103.5

Explore specifications ↗

79 / TOOLING

Tool Holders & Adapters

BMT Straight Driven Tool Holder

BMT65-0-ER40

Projection above mounting face (A, mm)95.4Drive-side projection below mounting face (B, mm)111

Explore specifications ↗

80 / TOOLING

Tool Holders & Adapters

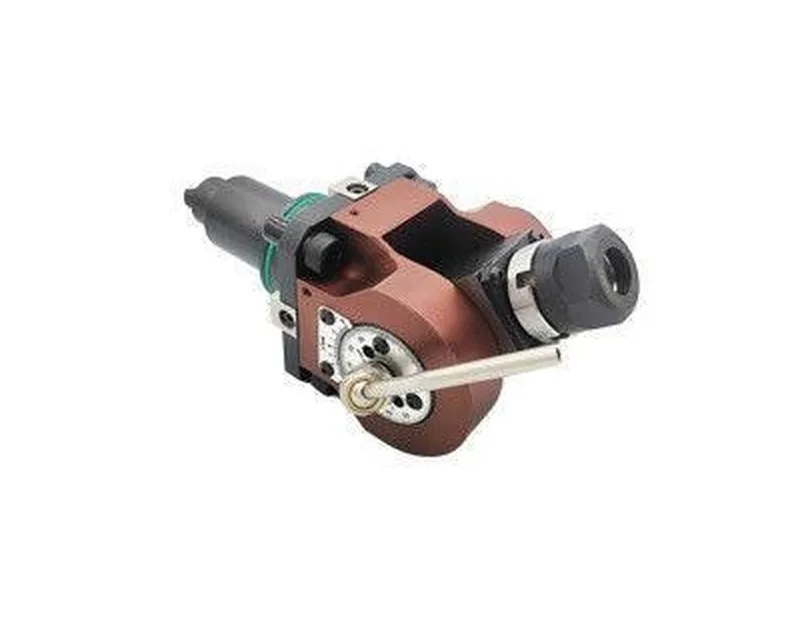

BMT Angular Driven Tool Holder

BMT40-ER16

Projection above mounting face (A, mm)61Mounting-face to output-centre offset (B, mm)45

Explore specifications ↗

81 / TOOLING

Tool Holders & Adapters

BMT Angular Driven Tool Holder

BMT45-ER20

Projection above mounting face (A, mm)83Mounting-face to output-centre offset (B, mm)45

Explore specifications ↗

82 / TOOLING

Tool Holders & Adapters

BMT Angular Driven Tool Holder

BMT55-ER20

Projection above mounting face (A, mm)103.5Mounting-face to output-centre offset (B, mm)55

Explore specifications ↗

83 / TOOLING

Tool Holders & Adapters

BMT Angular Driven Tool Holder

BMT65-ER20

Projection above mounting face (A, mm)111Mounting-face to output-centre offset (B, mm)65

Explore specifications ↗

84 / TOOLING

Tool Holders & Adapters

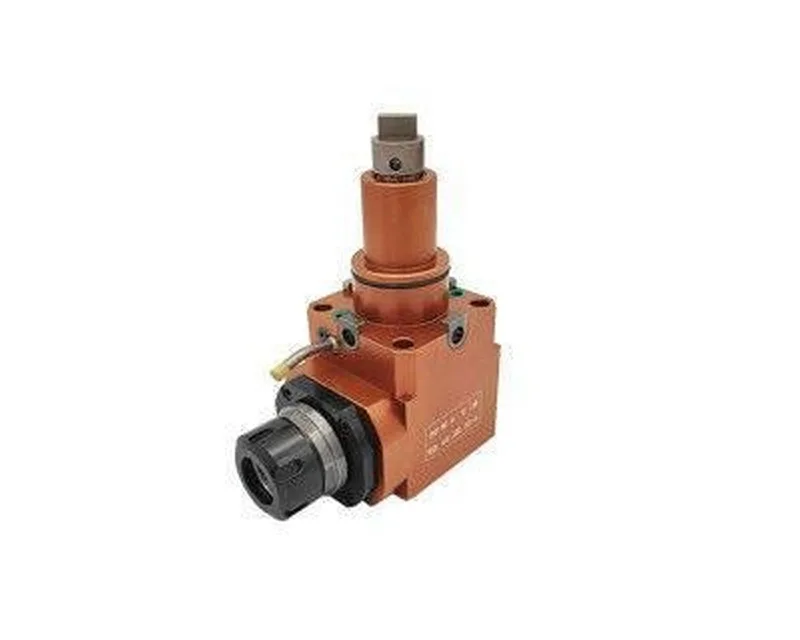

BMT Right-Angle Driven Tool Holder

BMT40-90-ER25-H60

Output-centre offset (A, mm)60Overall drive-axis length (B, mm)151.5

Explore specifications ↗

85 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT40-90-ER25-H85

Output-centre offset (A, mm)85Overall drive-axis length (B, mm)176.5

Explore specifications ↗

86 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT45-90-ER25-H60

Output-centre offset (A, mm)60Overall drive-axis length (B, mm)173

Explore specifications ↗

87 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT55-90-ER32-H60

Output-centre offset (A, mm)60Overall drive-axis length (B, mm)201.5

Explore specifications ↗

88 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT55-90-ER32-H85

Output-centre offset (A, mm)85Overall drive-axis length (B, mm)224.5

Explore specifications ↗

89 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT65-90-ER40-H72

Output-centre offset (A, mm)72Overall drive-axis length (B, mm)225

Explore specifications ↗

90 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT65-90-ER40-H100

Output-centre offset (A, mm)100Overall drive-axis length (B, mm)250

Explore specifications ↗

91 / TOOLING

Tool Holders & Adapters

BMT Right-Angle Driven Tool Holder

BMT65-90-ER40-H125

Output-centre offset (A, mm)125Overall drive-axis length (B, mm)275

Explore specifications ↗

92 / TOOLING

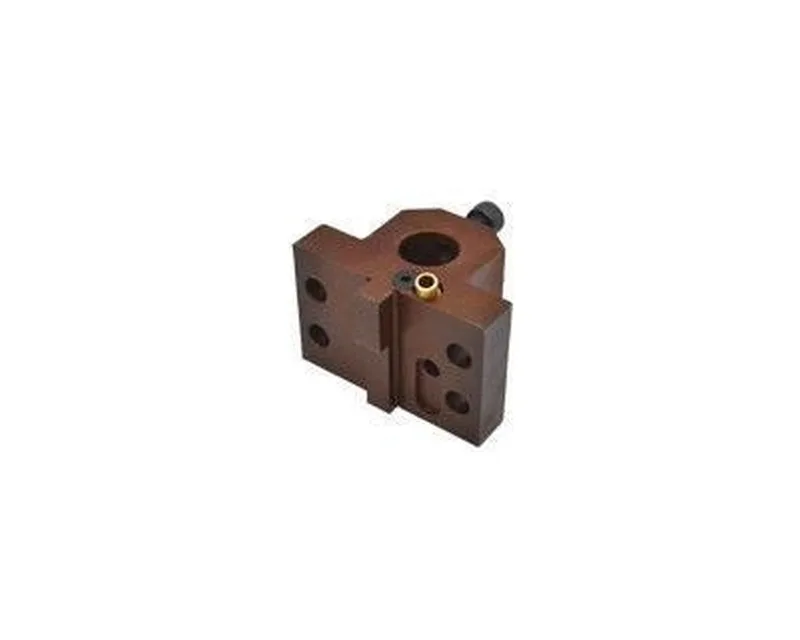

Servo Turret Boring Tool Holder: catalogue photograph for F58*G20*D10*A25

Tool Holders & Adapters

F58G20D10*A25 Servo Turret Boring Tool Holder

Internal ref: SERVO-01-01

selection codeF58*G20*D10*A25Interface / applicationServo turret

Explore specifications ↗

93 / TOOLING

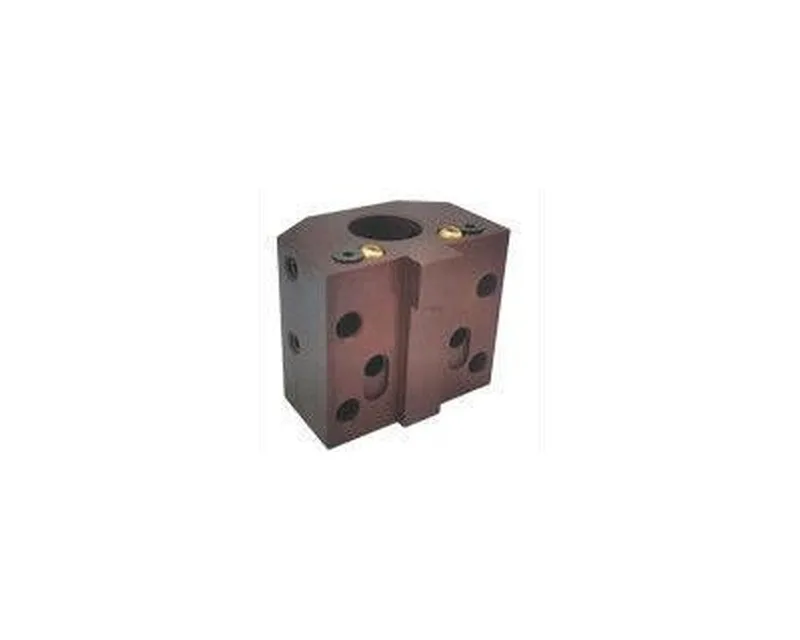

Servo Turret Boring Tool Holder: catalogue photograph for F70*G40*D20台*A32

Tool Holders & Adapters

F70G40D20台*A32 Servo Turret Boring Tool Holder

Internal ref: SERVO-01-02

selection codeF70*G40*D20台*A32Interface / applicationServo turret

Explore specifications ↗

94 / TOOLING

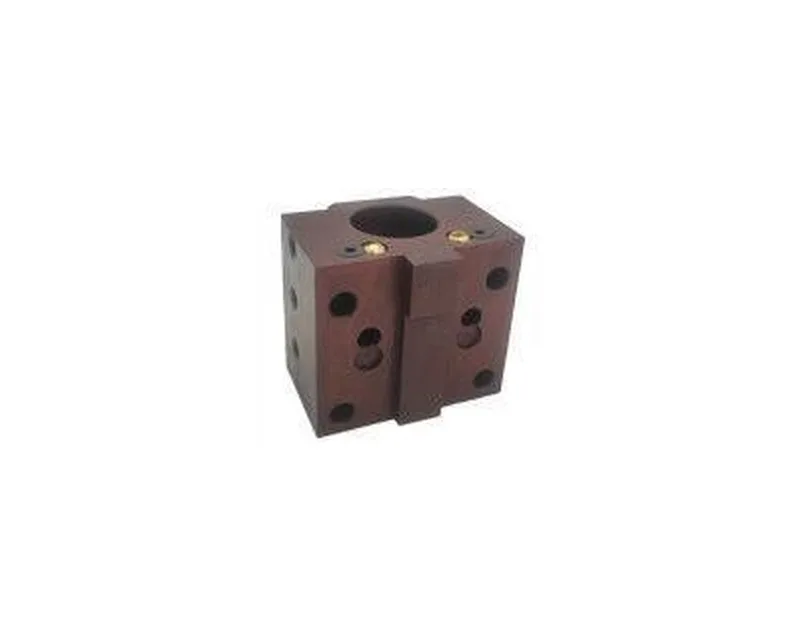

Servo Turret Boring Tool Holder: catalogue photograph for F72*G55*D22*A40

Tool Holders & Adapters

F72G55D22*A40 Servo Turret Boring Tool Holder

Internal ref: SERVO-01-03

selection codeF72*G55*D22*A40Interface / applicationServo turret

Explore specifications ↗

95 / TOOLING

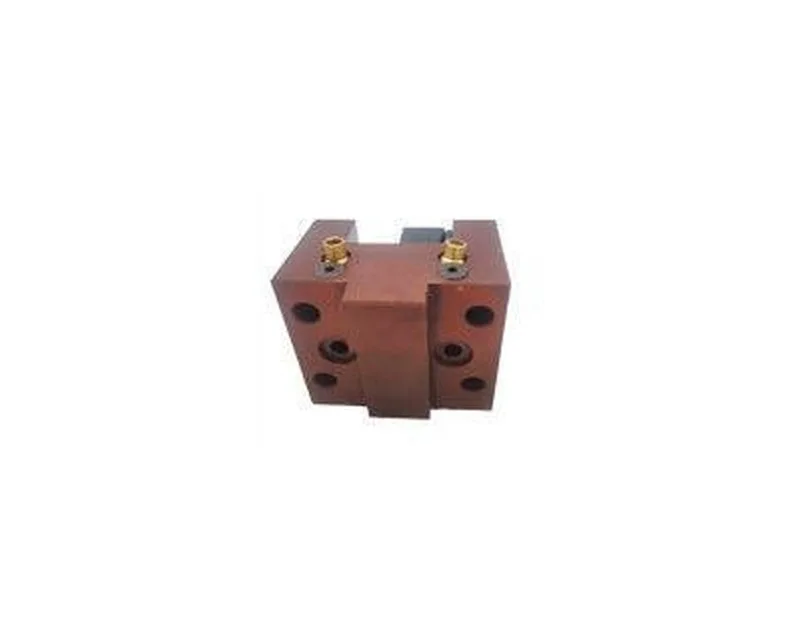

Servo Turret Face Tool Holder: catalogue photograph for F58*G35*D25*开40

Tool Holders & Adapters

F58G35D25*开40 Servo Turret Face Tool Holder

Internal ref: SERVO-01-04

selection codeF58*G35*D25*开40Interface / applicationServo turret

Explore specifications ↗

96 / TOOLING

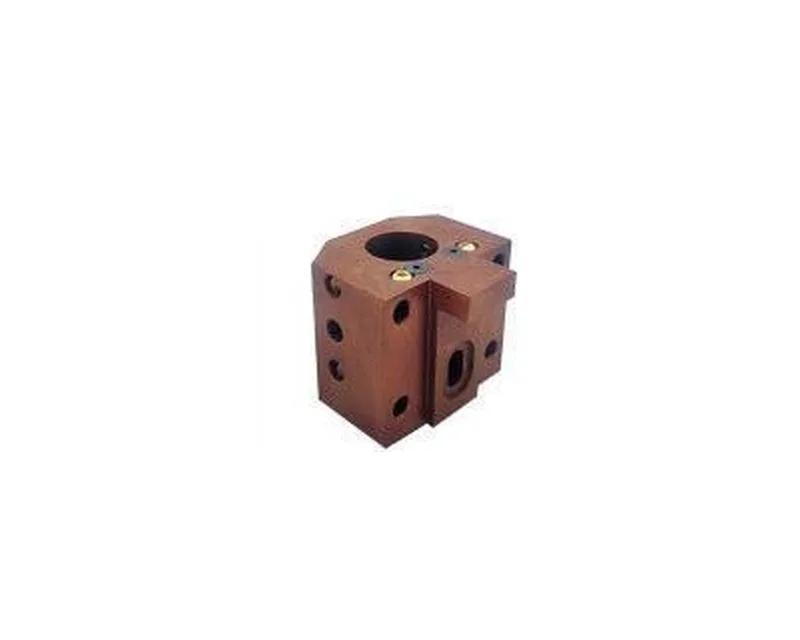

Servo Turret Boring Tool Holder: catalogue photograph for F60*G45*D30*A32

Tool Holders & Adapters

F60G45D30*A32 Servo Turret Boring Tool Holder

Internal ref: SERVO-01-05

selection codeF60*G45*D30*A32Interface / applicationServo turret

Explore specifications ↗
