CNC CUTTING TOOLS

All products

49–72 OF 735 MODELS · CATALOGUE SPECIFICATIONS

49 / TOOLING

Tool Holders & Adapters

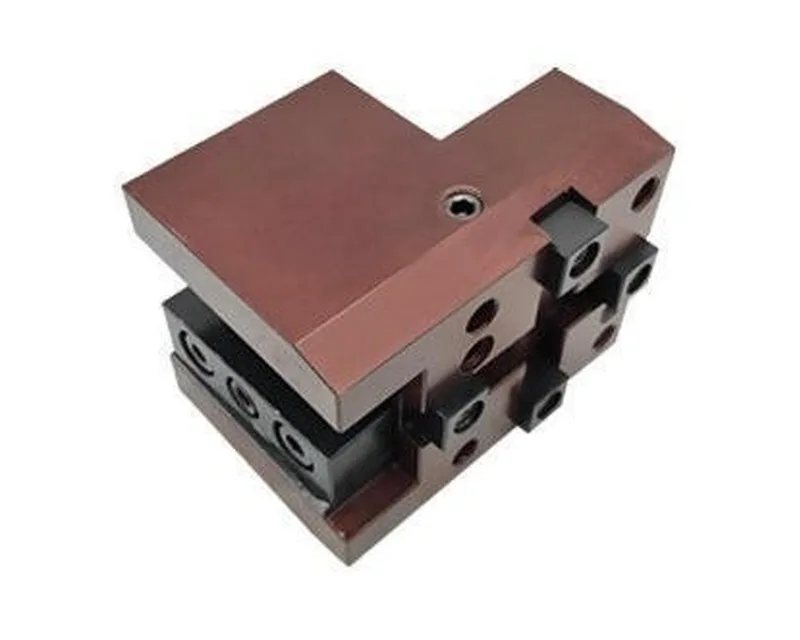

BMT External Tool Holder

BMT40-C20-H55

Lower-step height (A, mm)30Overall side-view height (B, mm)55

Explore specifications ↗

50 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT45-C20-H60

Lower-step height (A, mm)30Overall side-view height (B, mm)60

Explore specifications ↗

51 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT45-C25-H80

Lower-step height (A, mm)30Overall side-view height (B, mm)80

Explore specifications ↗

52 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT55-C25-H80

Lower-step height (A, mm)30Overall side-view height (B, mm)80

Explore specifications ↗

53 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT65-C25-H80

Lower-step height (A, mm)30Overall side-view height (B, mm)80

Explore specifications ↗

54 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT65-C32-H75

Lower-step height (A, mm)30Overall side-view height (B, mm)75

Explore specifications ↗

55 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT65-C32-H100

Lower-step height (A, mm)30Overall side-view height (B, mm)100

Explore specifications ↗

56 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT75-C32-H85

Lower-step height (A, mm)30Overall side-view height (B, mm)85

Explore specifications ↗

57 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT85-C32-H95

Lower-step height (A, mm)50Overall side-view height (B, mm)95

Explore specifications ↗

58 / TOOLING

Tool Holders & Adapters

BMT External Tool Holder

BMT85-C40-H95

Lower-step height (A, mm)50Overall side-view height (B, mm)95

Explore specifications ↗

59 / TOOLING

Tool Holders & Adapters

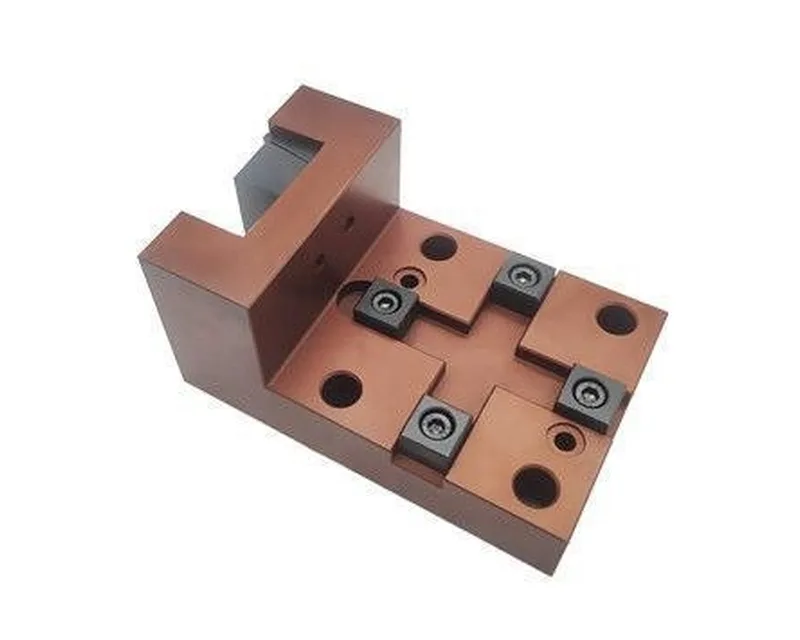

BMT Reverse External Tool Holder

BMT45-C25-H65-FX

Lower-step height (A, mm)40Overall side-view height (B, mm)65

Explore specifications ↗

60 / TOOLING

Tool Holders & Adapters

BMT Reverse External Tool Holder

BMT55-C25-H66-FX

Lower-step height (A, mm)30Overall side-view height (B, mm)66

Explore specifications ↗

61 / TOOLING

Tool Holders & Adapters

BMT Reverse External Tool Holder

BMT65-C25-H75-FX

Lower-step height (A, mm)30Overall side-view height (B, mm)75

Explore specifications ↗

62 / TOOLING

Tool Holders & Adapters

BMT Reverse External Tool Holder

BMT75-C32-H80-FX

Lower-step height (A, mm)32Overall side-view height (B, mm)80

Explore specifications ↗

63 / TOOLING

Tool Holders & Adapters

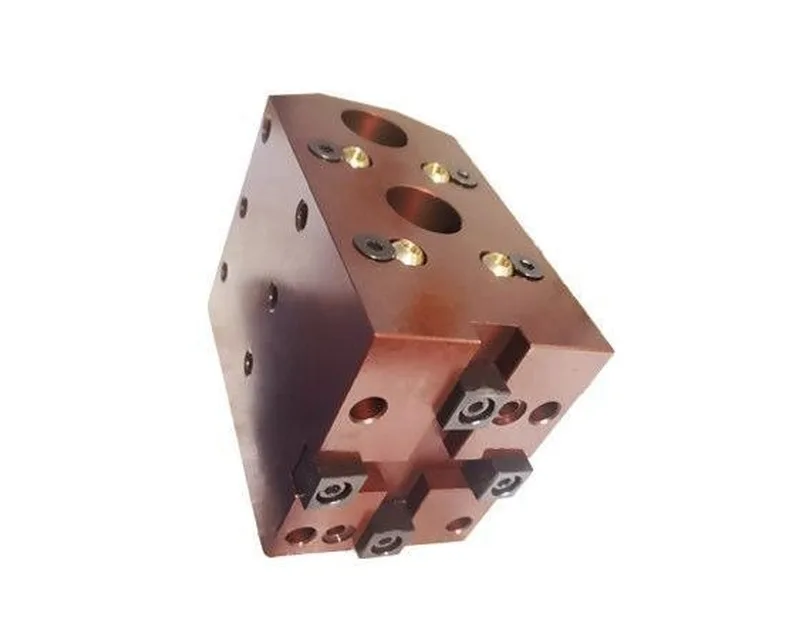

BMT Double Boring Tool Holder

BMT40-DB20-H40/75

Lower bore centre height (A, mm)40Upper bore centre height (B, mm)75

Explore specifications ↗

64 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT45-DB20-H40/85

Lower bore centre height (A, mm)40Upper bore centre height (B, mm)85

Explore specifications ↗

65 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT45-DB20-H55/H90

Lower bore centre height (A, mm)45Upper bore centre height (B, mm)90

Explore specifications ↗

66 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT45-DB20-H60/110

Lower bore centre height (A, mm)60Upper bore centre height (B, mm)110

Explore specifications ↗

67 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT45-DB20-H60/120

Lower bore centre height (A, mm)60Upper bore centre height (B, mm)120

Explore specifications ↗

68 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT55-DB25-H65/110

Lower bore centre height (A, mm)65Upper bore centre height (B, mm)110

Explore specifications ↗

69 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT55-DB32-H60/100

Lower bore centre height (A, mm)60Upper bore centre height (B, mm)100

Explore specifications ↗

70 / TOOLING

Tool Holders & Adapters

BMT Double Boring Tool Holder

BMT65-DB40-H65/120

Lower bore centre height (A, mm)65Upper bore centre height (B, mm)120

Explore specifications ↗

71 / TOOLING

Tool Holders & Adapters

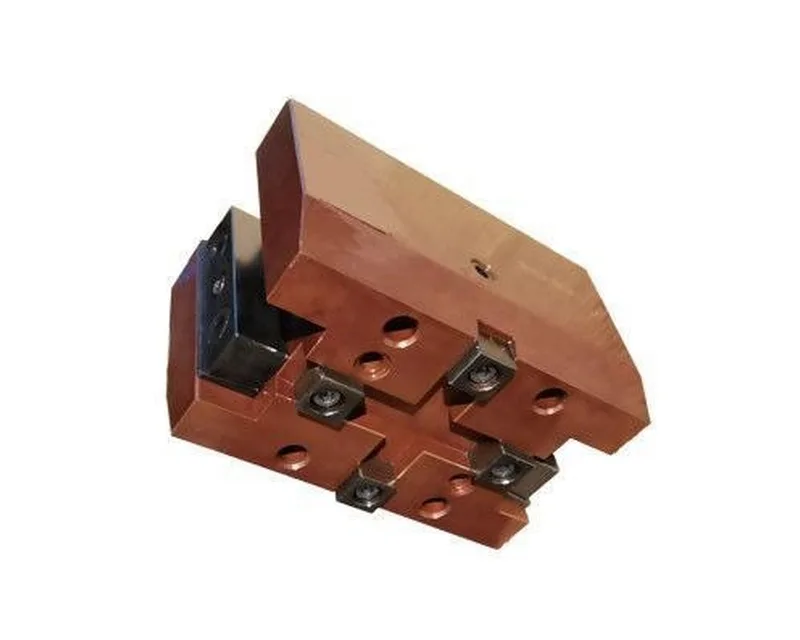

BMT Double External Tool Holder

BMT40-DC20-H55

Side-view body depth (A, mm)55Tool-seat opening depth (B, mm)20

Explore specifications ↗

72 / TOOLING

Tool Holders & Adapters

BMT Double External Tool Holder

BMT45-DC20-H60

Side-view body depth (A, mm)60Tool-seat opening depth (B, mm)20

Explore specifications ↗
