CNC CUTTING TOOLS

All products

25–48 OF 735 MODELS · CATALOGUE SPECIFICATIONS

25 / TOOLING

Tool Holders & Adapters

BMT Boring Tool Holder

BMT65-B60-H100

Bore centre height (A, mm)100Overall front-view height (B, mm)150

Explore specifications ↗

26 / TOOLING

Tool Holders & Adapters

BMT Boring Tool Holder

BMT75-B50-H90

Bore centre height (A, mm)90Overall front-view height (B, mm)130

Explore specifications ↗

27 / TOOLING

Tool Holders & Adapters

BMT Boring Tool Holder

BMT75-B60-H90

Bore centre height (A, mm)90Overall front-view height (B, mm)140

Explore specifications ↗

28 / TOOLING

Tool Holders & Adapters

BMT Boring Tool Holder

BMT85-B40-H85

Bore centre height (A, mm)85Overall front-view height (B, mm)132

Explore specifications ↗

29 / TOOLING

Tool Holders & Adapters

BMT Boring Tool Holder

BMT85-B60-H85

Bore centre height (A, mm)85Overall front-view height (B, mm)130

Explore specifications ↗

30 / TOOLING

Tool Holders & Adapters

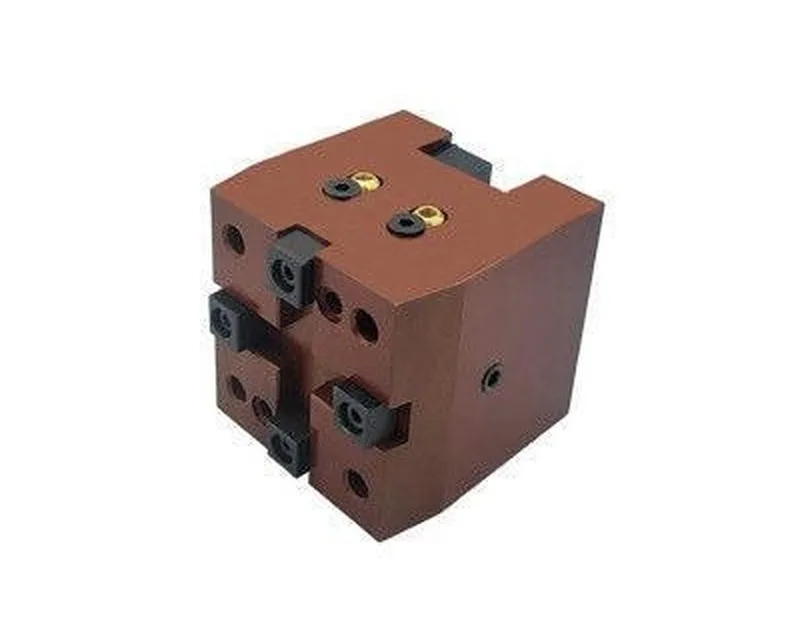

BMT Face Tool Holder

BMT40-F20-H65

Tool-seat opening height (A, mm)20Overall front-view height (B, mm)65

Explore specifications ↗

31 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT45-F20-H80

Tool-seat opening height (A, mm)20Overall front-view height (B, mm)80

Explore specifications ↗

32 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT45-F20-H90

Tool-seat opening height (A, mm)20Overall front-view height (B, mm)90

Explore specifications ↗

33 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT45-F25-H85

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)85

Explore specifications ↗

34 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT45-F25-H95

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)95

Explore specifications ↗

35 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT45-F25-H110

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)110

Explore specifications ↗

36 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT55-F20-H80

Tool-seat opening height (A, mm)20Overall front-view height (B, mm)80

Explore specifications ↗

37 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT55-F20-H90

Tool-seat opening height (A, mm)20Overall front-view height (B, mm)90

Explore specifications ↗

38 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT55-F25-H85

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)85

Explore specifications ↗

39 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT55-F25-H100

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)100

Explore specifications ↗

40 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT55-F25-H125

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)125

Explore specifications ↗

41 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT65-F25-H95

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)95

Explore specifications ↗

42 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT65-F25-H100

Tool-seat opening height (A, mm)25Overall front-view height (B, mm)100

Explore specifications ↗

43 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT65-F32-H82

Tool-seat opening height (A, mm)32Overall front-view height (B, mm)82

Explore specifications ↗

44 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT65-F32-H100

Tool-seat opening height (A, mm)32Overall front-view height (B, mm)100

Explore specifications ↗

45 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT65-F32-H132

Tool-seat opening height (A, mm)32Overall front-view height (B, mm)132

Explore specifications ↗

46 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT75-F32-H115

Tool-seat opening height (A, mm)32Overall front-view height (B, mm)115

Explore specifications ↗

47 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT85-F40-H40

Tool-seat opening height (A, mm)40Overall front-view height (B, mm)40

Explore specifications ↗

48 / TOOLING

Tool Holders & Adapters

BMT Face Tool Holder

BMT85-F40-H80

Tool-seat opening height (A, mm)40Overall front-view height (B, mm)80

Explore specifications ↗
