BMT75-C32-H85 is listed in the BMT External Tool Holder range. Static external turning tool holder. Check the square tool section, tool position and base pattern.
Selection data: Lower-step height (A, mm): 30; Overall side-view height (B, mm): 85; Locating-slot width (C, mm): 25; Upper-step length (D, mm): 88.5; Vertical mounting-hole pitch (E, mm): 90; Horizontal mounting-hole pitch (F, mm): 90; Mounting-face width (G, mm): 112; Overall plan-view length (H, mm): 150.5; End-step projection (I, mm): 32; Side-opening width (J, mm): 64.

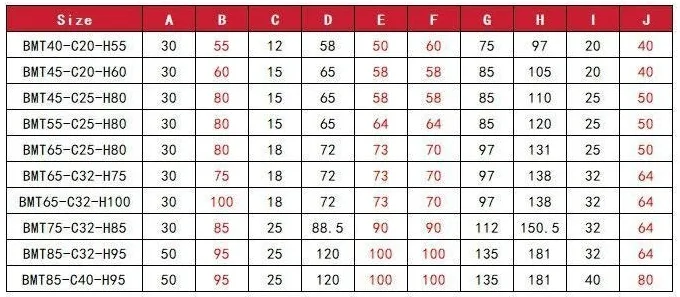

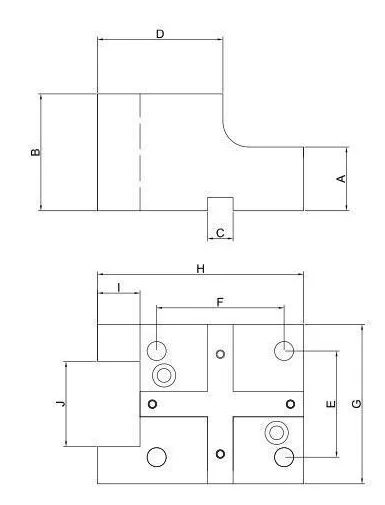

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 4.
For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.
