601–624 OF 1971 MODELS · CATALOGUE SPECIFICATIONS

601 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-6050-25

Centre height (mm)60Bore (mm)25

Explore specifications ↗

602 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-6550-25

Centre height (mm)65Bore (mm)25

Explore specifications ↗

603 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-7550-25

Centre height (mm)75Bore (mm)25

Explore specifications ↗

604 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-7550-32

Centre height (mm)75Bore (mm)32

Explore specifications ↗

605 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-8050-20

Centre height (mm)80Bore (mm)20

Explore specifications ↗

606 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-8050-25

Centre height (mm)80Bore (mm)25

Explore specifications ↗

607 / TOOLING

Tool Holders & Adapters

ZA Square Boring Tool Holder

ZA-3050-25

Centre height (mm)30Bore (mm)25

Explore specifications ↗

608 / TOOLING

Tool Holders & Adapters

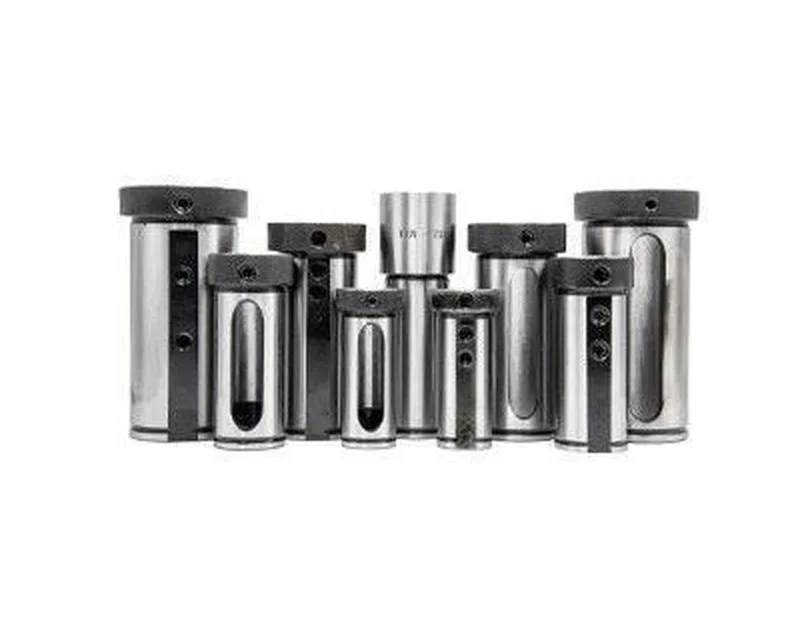

Lathe Guide Bush

Internal ref: GUIDE-D16

Diameter (D, mm)16Bore options d (mm)4/5/6/7/8/9/10/12

Explore specifications ↗

609 / TOOLING

Tool Holders & Adapters

Lathe Guide Bush

Internal ref: GUIDE-D20

Diameter (D, mm)20Bore options d (mm)4/5/6/7/8/9/10/11/12/13/14/15/16/MT1/MT2

Explore specifications ↗

610 / TOOLING

Tool Holders & Adapters

Lathe Guide Bush

Internal ref: GUIDE-D25

Diameter (D, mm)25Bore options d (mm)4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/20/MT1/MT2

Explore specifications ↗

611 / TOOLING

Tool Holders & Adapters

Lathe Guide Bush

Internal ref: GUIDE-D32

Diameter (D, mm)32Bore options d (mm)4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/24/25/MT1/MT2/MT3/MT4

Explore specifications ↗

612 / TOOLING

Tool Holders & Adapters

Lathe Guide Bush

Internal ref: GUIDE-D40

Diameter (D, mm)40Bore options d (mm)4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/24/25/30/32/MT1/MT2/MT3/MT4

Explore specifications ↗

613 / TOOLING

Tool Holders & Adapters

Lathe Guide Bush

Internal ref: GUIDE-D50

Diameter (D, mm)50Bore options d (mm)6/8/10/12/14/16/18/20/22/25/30/32/40/MT2/MT3/MT4/MT5

Explore specifications ↗

614 / TOOLING

Tool Holders & Adapters

Lathe Guide Bush

Internal ref: GUIDE-D60

Diameter (D, mm)60Bore options d (mm)16/18/20/22/25/32/40/50/MT1/MT2/MT3/MT4/MT5

Explore specifications ↗

615 / TOOLING

Tool Holders & Adapters

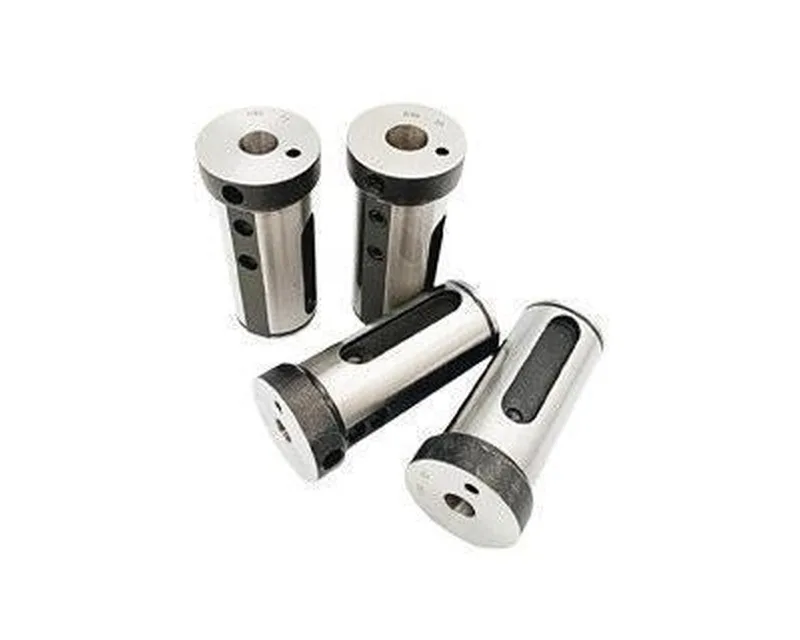

Internally Cooled Guide Sleeve

Internal ref: COOL-GUIDE-D20

Diameter (D, mm)20Bore options d (mm)4/5/6/8

Explore specifications ↗

616 / TOOLING

Tool Holders & Adapters

Internally Cooled Guide Sleeve

Internal ref: COOL-GUIDE-D25

Diameter (D, mm)25Bore options d (mm)4/5/6/8/10/12

Explore specifications ↗

617 / TOOLING

Tool Holders & Adapters

Internally Cooled Guide Sleeve

Internal ref: COOL-GUIDE-D32

Diameter (D, mm)32Bore options d (mm)6/8/10/12/14/16

Explore specifications ↗

618 / TOOLING

Tool Holders & Adapters

Internally Cooled Guide Sleeve

Internal ref: COOL-GUIDE-D40

Diameter (D, mm)40Bore options d (mm)6/8/10/12/14/16/18/20

Explore specifications ↗

619 / TOOLING

Tool Holders & Adapters

Internally Cooled Guide Sleeve

Internal ref: COOL-GUIDE-D50

Diameter (D, mm)50Bore options d (mm)6/8/10/12/14/16/18/20/22/25/32

Explore specifications ↗

620 / TOOLING

Tool Holders & Adapters

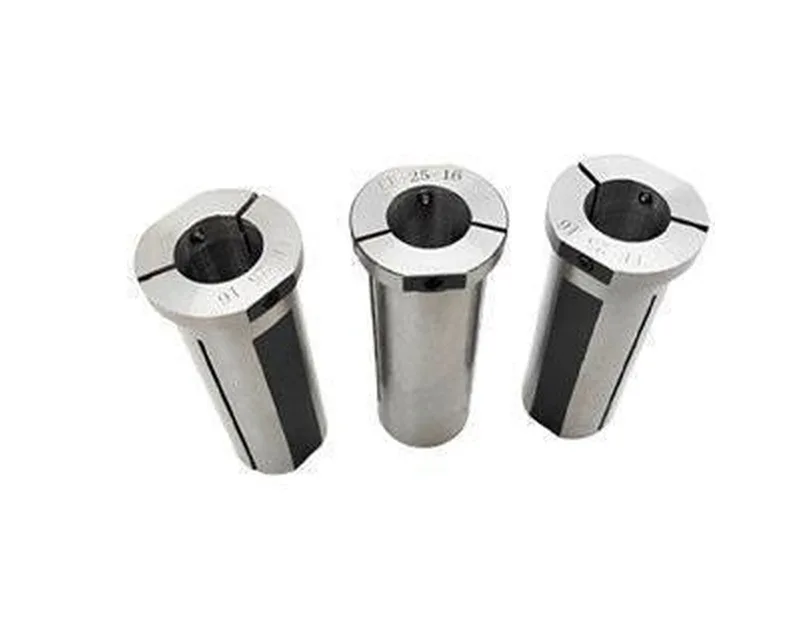

Clamping-Type Reduction Sleeve

Internal ref: CLAMP-SLEEVE-D25

Outer D25Bore options d (mm)8/10/12/14/16/18/20

Explore specifications ↗

621 / TOOLING

Tool Holders & Adapters

Clamping-Type Reduction Sleeve

Internal ref: CLAMP-SLEEVE-D32

Outer D32Bore options d (mm)8/10/12/14/16/18/20/22/24/25

Explore specifications ↗

622 / TOOLING

Tool Holders & Adapters

Clamping-Type Reduction Sleeve

Internal ref: CLAMP-SLEEVE-D40

Outer D40Bore options d (mm)8/10/12/14/16/18/20/22/24/25/32

Explore specifications ↗

623 / TOOLING

Tool Holders & Adapters

Clamping-Type Reduction Sleeve

Internal ref: CLAMP-SLEEVE-D50

Outer D50Bore options d (mm)8/10/12/14/16/18/20/22/24/25/32/40

Explore specifications ↗

624 / TOOLING

Tool Holders & Adapters

Clamping-Type Reduction Sleeve

Internal ref: CLAMP-SLEEVE-D60

Outer D60Bore options d (mm)8/10/12/14/16/18/20/22/24/25/32/40/50

Explore specifications ↗
