GUIDE-D16 is listed in the Lathe Guide Bush range. Guide bush for reducing a holder bore to a selected tool size. Bore entries separated by slashes are selectable alternatives; MT indicates a Morse taper option. The GUIDE reference is internal and is not a supplier part number.
Selection data: Diameter (D, mm): 16; Bore-options-d: 4/5/6/7/8/9/10/12; Length (L, mm): 65; Length (L1, mm): 10; Length (L2, mm): 40; Thread-M: M6.

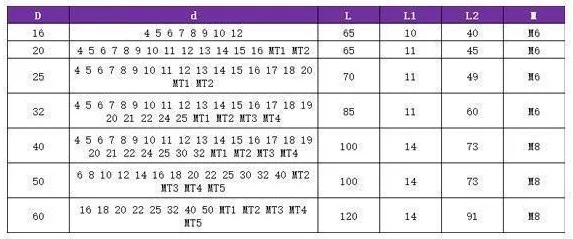

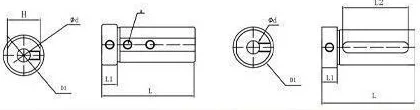

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 26.
For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.
