721–735 OF 735 MODELS · CATALOGUE SPECIFICATIONS
721 / TOOLING
Tool Holders & Adapters

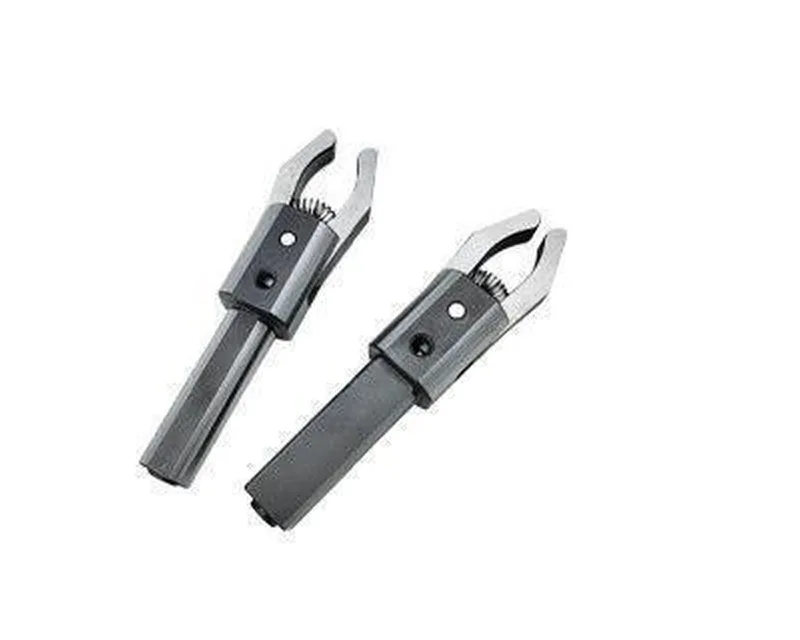

LLQ CNC Lathe Bar Puller
LLQ-D25
Shank styleRoundShank size (mm)25
Explore specifications ↗722 / TOOLING
Tool Holders & Adapters
LLQ CNC Lathe Bar Puller
LLQ-D32
Shank styleRoundShank size (mm)32
Explore specifications ↗723 / TOOLING
Tool Holders & Adapters
LLQ CNC Lathe Bar Puller
LLQ-W16
Shank styleSquareShank size (mm)16x16
Explore specifications ↗724 / TOOLING
Tool Holders & Adapters
LLQ CNC Lathe Bar Puller
LLQ-W20
Shank styleSquareShank size (mm)20x20
Explore specifications ↗725 / TOOLING
Tool Holders & Adapters
LLQ CNC Lathe Bar Puller
LLQ-W25
Shank styleSquareShank size (mm)25x25
Explore specifications ↗726 / TOOLING
Tool Holders & Adapters

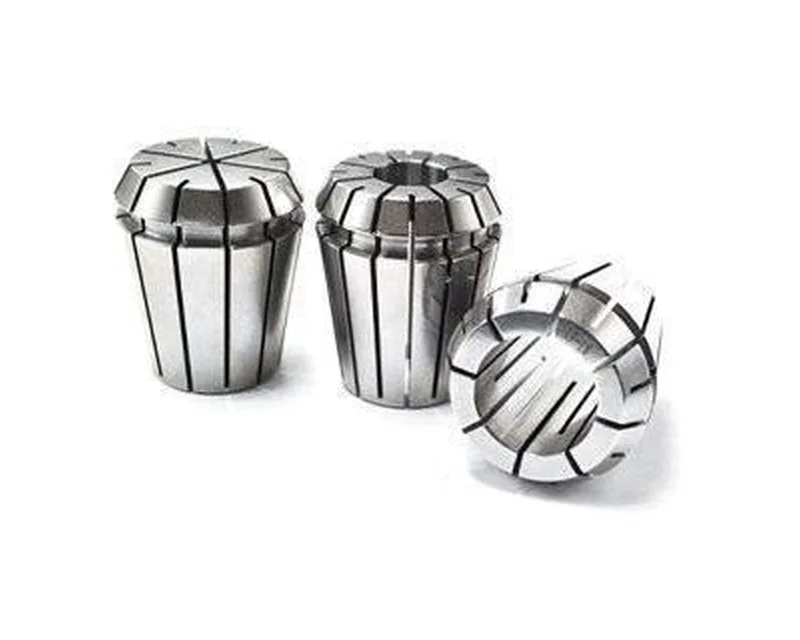

ER Collet
ER8
Diameter (D, mm)8.5Length (L, mm)13
Explore specifications ↗727 / TOOLING
Tool Holders & Adapters
ER Collet
ER11
Diameter (D, mm)11.5Length (L, mm)18
Explore specifications ↗728 / TOOLING
Tool Holders & Adapters
ER Collet
ER16
Diameter (D, mm)17Length (L, mm)27.5
Explore specifications ↗729 / TOOLING
Tool Holders & Adapters
ER Collet
ER20
Diameter (D, mm)21Length (L, mm)31.5
Explore specifications ↗730 / TOOLING
Tool Holders & Adapters
ER Collet
ER25
Diameter (D, mm)26Length (L, mm)34
Explore specifications ↗731 / TOOLING
Tool Holders & Adapters
ER Collet
ER32
Diameter (D, mm)33Length (L, mm)40
Explore specifications ↗732 / TOOLING
Tool Holders & Adapters
ER Collet
ER40
Diameter (D, mm)41Length (L, mm)46
Explore specifications ↗733 / TOOLING
Tool Holders & Adapters
ER Collet
ER50
Diameter (D, mm)52Length (L, mm)60
Explore specifications ↗734 / TOOLING
Tool Holders & Adapters

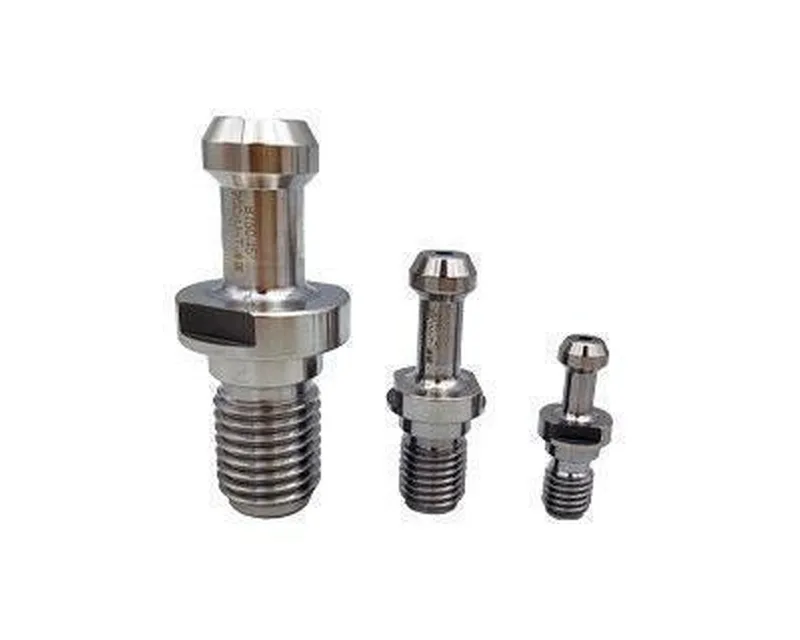

BT Pull Stud
Internal ref: CAT-P29-BT-PULL-STUD
Interface / applicationBT tool holders
Explore specifications ↗735 / TOOLING
Tool Holders & Adapters

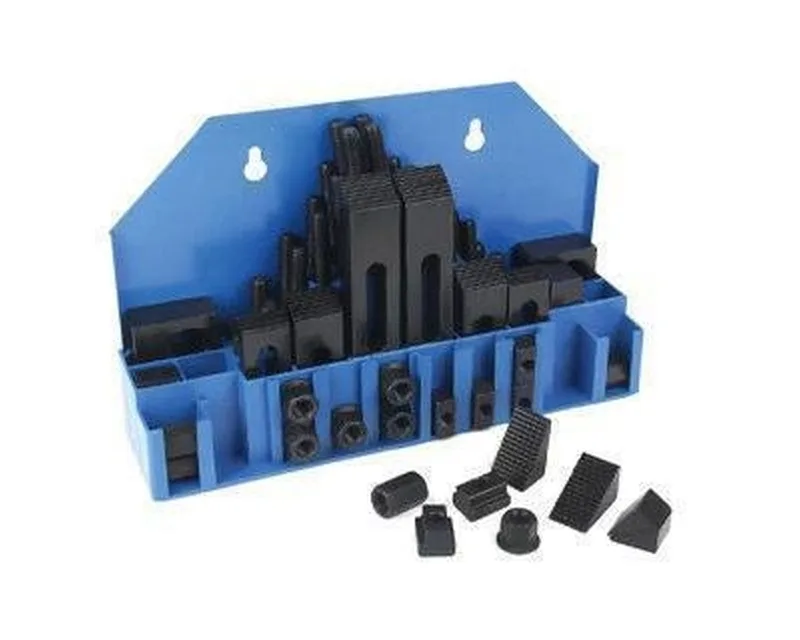

CNC Workholding Clamping Kit
Internal ref: CAT-P29-CLAMPING-KIT
Interface / applicationCNC machine / milling table workholding
Explore specifications ↗
