SHB12 SHB Small-Diameter Tool Sleeve

Name: SHB12 SHB Small-Diameter Tool Sleeve
SKU: SHB12

MODEL / SHB12

SHB12: SHB Small-Diameter Tool Sleeve for Small cylindrical tools / side-lock clamping. L-as-printed: 12; L1-options-as-printed: 3/4/5/6. Check the dimension drawing when selecting a replacement.

L as printed12

L1 options as printed3/4/5/6

L2 as printed40

L3 as printed100

Ask about this model on WhatsApp ↗

Model number is included in your message.
Price, availability and supply scope confirmed by quotation.

Enquire by email ↗
View full specifications ↓

01 / TECHNICAL DATA

Know the specifications.

Catalogue specifications for SHB12
Parameter	Specification
Model	SHB12
Product family	SHB Small-Diameter Tool Sleeve
Interface / application	Small cylindrical tools / side-lock clamping
L as printed	12
L1 options as printed	3/4/5/6
L2 as printed	40
L3 as printed	100
Dimension reference	Catalogue drawing and table, PDF page 27; dimensions in mm unless stated.

02 / PRODUCT OVERVIEW

Check the configuration.

SHB12 is listed in the SHB Small-Diameter Tool Sleeve range. Small-tool sleeve with side locking. The source table labels its columns L, L1, L2 and L3; these labels are preserved rather than inferred from the photograph.

Selection data: L-as-printed: 12; L1-options-as-printed: 3/4/5/6; L2-as-printed: 40; L3-as-printed: 100.

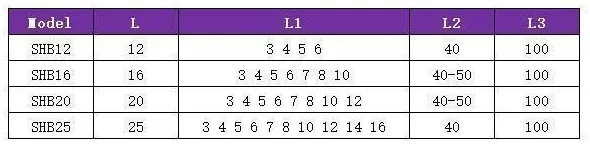

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 27.

For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.

Content updated: 24 October 2026

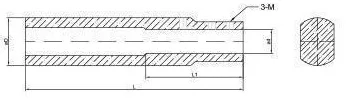

03 / DIMENSION REFERENCE

Check every connection.

04 / BEFORE ORDERING

Clarify the details.

What is included with this item?

Confirm the body, holder, head, inserts and accessories in your quotation. A series illustration does not establish which components are included.

How do I check compatibility?

Compare the listed interface, dimensions and mating components with your application. Send the machine interface, workpiece material and drawing for a configuration discussion.
