OSL40-32 OSL Oil-Circuit Guide Sleeve

Name: OSL40-32 OSL Oil-Circuit Guide Sleeve
SKU: OSL40-32

MODEL / OSL40-32

OSL40-32: OSL Oil-Circuit Guide Sleeve for Lathe holder / through-coolant tool guidance. Diameter (d, mm): 32; Diameter (D, mm): 40. Check the dimension drawing when selecting a replacement.

Diameter (d, mm)32

Diameter (D, mm)40

Diameter (D1, mm)58

Length (L, mm)71

Ask about this model on WhatsApp ↗

Model number is included in your message.
Price, availability and supply scope confirmed by quotation.

Enquire by email ↗
View full specifications ↓

01 / TECHNICAL DATA

Know the specifications.

Catalogue specifications for OSL40-32
Parameter	Specification
Model	OSL40-32
Product family	OSL Oil-Circuit Guide Sleeve
Interface / application	Lathe holder / through-coolant tool guidance
Diameter (d, mm)	32
Diameter (D, mm)	40
Diameter (D1, mm)	58
Length (L, mm)	71
Dimension reference	Catalogue drawing and table, PDF page 27; dimensions in mm unless stated.

02 / PRODUCT OVERVIEW

Check the configuration.

OSL40-32 is listed in the OSL Oil-Circuit Guide Sleeve range. Guide sleeve with coolant passage arrangement. Match inner and outer diameters and flange dimensions; the catalogue does not supply a pressure rating.

Selection data: Diameter (d, mm): 32; Diameter (D, mm): 40; Diameter (D1, mm): 58; Length (L, mm): 71.

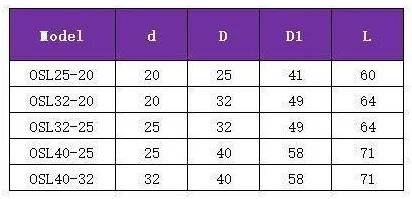

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 27.

For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.

Content updated: 24 October 2026

03 / DIMENSION REFERENCE

Check every connection.

04 / BEFORE ORDERING

Clarify the details.

What is included with this item?

Confirm the body, holder, head, inserts and accessories in your quotation. A series illustration does not establish which components are included.

How do I check compatibility?

Compare the listed interface, dimensions and mating components with your application. Send the machine interface, workpiece material and drawing for a configuration discussion.
