This fine boring head uses an LBK4 modular connection and an internal damping mechanism. The source shows through-tool coolant.
The listed boring diameter is 41-54 mm with ENH4-1, 50-63 mm with ENH4-2, or 61-74 mm with ENH4-3. The catalogue states that these ranges are based on a 0.4 mm insert nose radius and that inserts are not included. Confirm the required holder and insert configuration.

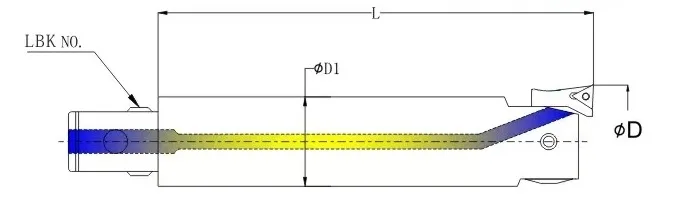

The catalogue image is a series illustration, not confirmation of the exact supplied configuration. Confirm the tool head, inserts and accessories required when requesting a quotation.
Technical reference: 2023 supplier catalogue, PDF page 1. Availability, price, MOQ and lead time require confirmation.
