ISO-M16 is listed in the ISO Tap Extension Rod range. Tap extension with the catalogue ISO shank-size arrangement. Select one listed length and match the tap shank and square dimensions; this is an extension, not a cutting tap.
Selection data: Length-options-L: 50/100/150/200; Length (L1, mm): 40; Diameter (D, mm): 18; Diameter (D1, mm): 12.5; Diameter (D2, mm): 12.5; Height (H, mm): 10.

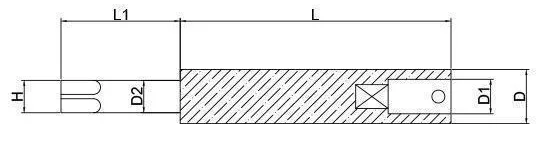

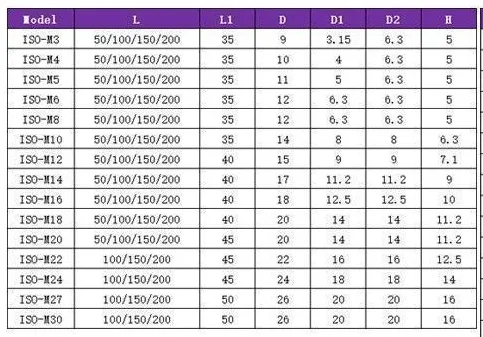

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 28.
For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.
