AUX-32-40-100 Lathe Auxiliary Tool Holder

Name: AUX-32-40-100 Lathe Auxiliary Tool Holder
SKU: AUX-32-40-100

INTERNAL CATALOGUE REFERENCE / AUX-32-40-100

AUX-32-40-100: Lathe Auxiliary Tool Holder for Lathe tool post. Front-view body width (A, mm): 62; Mounting-shank profile height (B, mm): 32. Check the dimension drawing when selecting a replacement.

Front-view body width (A, mm)62

Mounting-shank profile height (B, mm)32

Overall side-view length (C, mm)100

Tool-side profile height (D, mm)40

Ask about this item on WhatsApp ↗

Internal reference is included for enquiry tracking; it is not a manufacturer model number.
Price, availability and supply scope confirmed by quotation.

Enquire by email ↗
View full specifications ↓

01 / TECHNICAL DATA

Know the specifications.

Catalogue specifications for AUX-32-40-100
Parameter	Specification
Internal catalogue reference	32-40-100
Product family	Lathe Auxiliary Tool Holder
Interface / application	Lathe tool post
Front-view body width (A, mm)	62
Mounting-shank profile height (B, mm)	32
Overall side-view length (C, mm)	100
Tool-side profile height (D, mm)	40
Dimension reference	Catalogue drawing and table, PDF page 23; dimensions in mm unless stated.

02 / PRODUCT OVERVIEW

Check the configuration.

AUX-32-40-100 is listed in the Lathe Auxiliary Tool Holder range. Auxiliary holder with a cylindrical bore. The AUX prefix is an internal reference; the source model is the numeric part of the reference.

Selection data: Front-view body width (A, mm): 62; Mounting-shank profile height (B, mm): 32; Overall side-view length (C, mm): 100; Tool-side profile height (D, mm): 40.

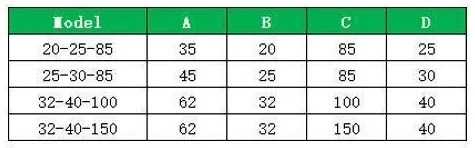

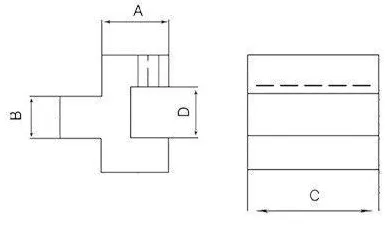

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 23.

For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.

Content updated: 24 October 2026

03 / DIMENSION REFERENCE

Check every connection.

04 / BEFORE ORDERING

Clarify the details.

What is included with this item?

Confirm the body, holder, head, inserts and accessories in your quotation. A series illustration does not establish which components are included.

How do I check compatibility?

Compare the listed interface, dimensions and mating components with your application. Send the machine interface, workpiece material and drawing for a configuration discussion.
