B1-16x12x24 is listed in the VDI B1 Radial Tool Holder - Right, Short range. Right-hand radial tool position, short form. Select using shank diameter d1, tool section h1 and the full mounting envelope.
Selection data: Diameter (d1, mm): 16; Width (b1, mm): 42; Width (b2, mm): 23; Width (b3, mm): 5; Height (h1, mm): 12; Height (h5, mm): 20; Height (h6, mm): 22; Length (l1, mm): 13; Length (l2, mm): 24.

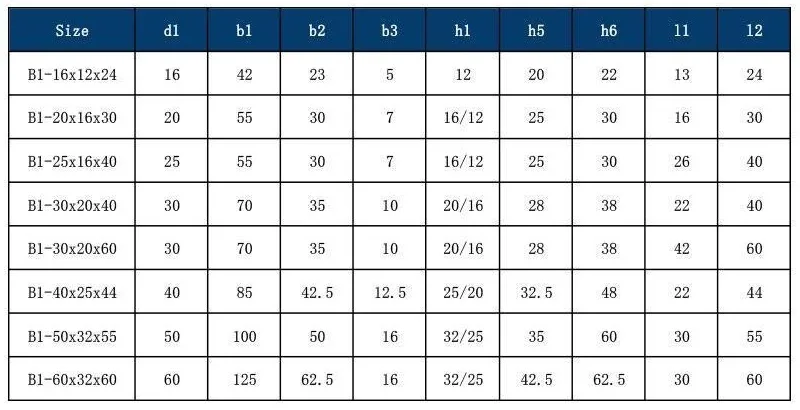

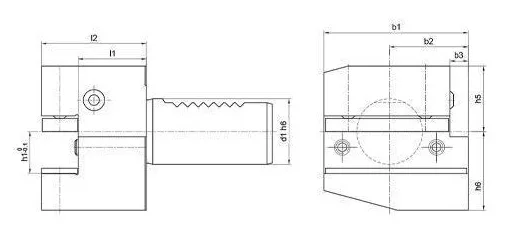

Use the attached drawing and original specification table to match the catalogue labels. Dimensions are in millimetres unless otherwise indicated. The main image represents the series; individual sizes may differ. Source: BMT catalogue, PDF page 10.
For an enquiry, send the model, machine and turret details, required tool dimensions and quantity via WhatsApp. Confirm the mounting arrangement and available clearance before ordering.
